Flag-Ship Model CF20 Series IPX4 Carbon Fiber Digital driver Laser Show System
author: Optlaser
2025-10-29
| Specification - IPX4 CF20 Series | |
| Models | CF25000-RGB |
| Source | Type: | Semiconductor diode | Full-colour RGB laser projector |
| Suitability: | outdoor laser displays [atmospheric, abstract, text, animations] |
| Beam Size@Aperture[mm] | 6.5*7mm |
| Divergence（full angle） | 1.0mrad |
| System control | Auto, SD card, DMX, RJ45, Interlock, ILDA ( optional FB4) |
| Scanning System | OPT-50B:40Kpps@8° ，60°MAX (measured data) |
| Wavelength [nm] | R/638 G/525 B/(450nm) |
| Laser Power [mW] | 7000mW / 8000mW / 10000mW |
| Guaranteed opt. output [mW] | 25W |
| Modulation [kHz] | 100 | analogue |
| Power Supply | 100~240V 50~60Hz |
| Power Consumption [W] | 315W |
| Weight [kg] | 14.1kg |

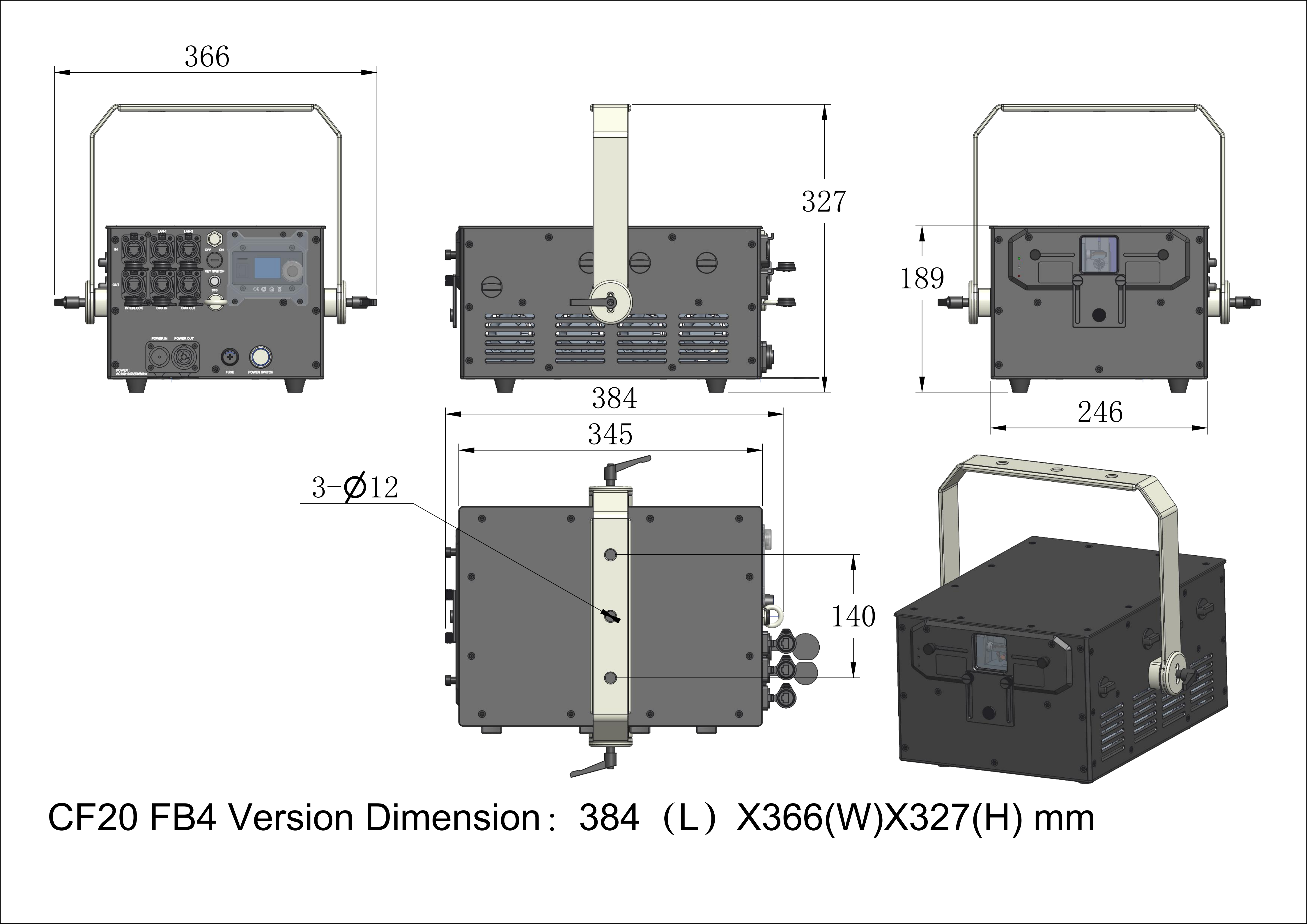

| Size [WxHxD, mm] | L*341*W246*H189mm |
| Cooling: | Heatsink+TEC Cooling+Casting carbon fiber Housing+Fans (at bottom) |

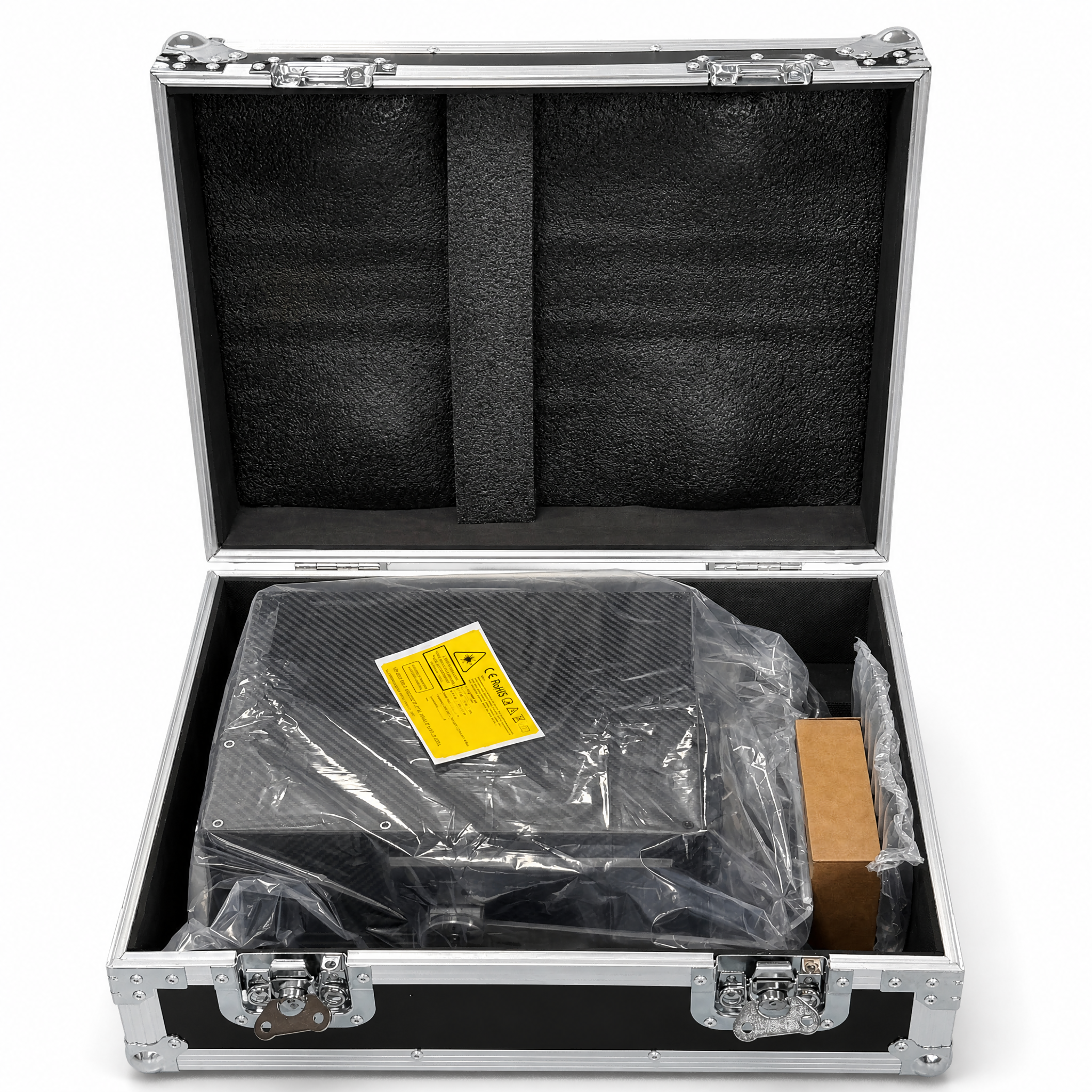

| Packaging: | Road case |
| Operation temperature [°C]: | minus 20℃ to 40℃ |
