CF20 Series Module 24W RGB Laser Module
RGB-24W
Over the years, we extensively expanded our range of laser modules, and now we cover a broad spectrum of laser wavelengths. From ultraviolet lasers, via the visible spectrum, up to near-infrared lasers.
Currently, we offer Thousands of different laser modules, with power output ranging from 5mW up to 180 Watts, in the range from 405nm to 660nm.Our mission is to ensure that a uniform and quality beam comes out of every Optlaser laser module. Single-diode lasers, multi-diode assemblies as well as solid-state lasers can be combined into a single free space beam or fiber-coupled output.
Currently, we offer Thousands of different laser modules, with power output ranging from 5mW up to 180 Watts, in the range from 405nm to 660nm.Our mission is to ensure that a uniform and quality beam comes out of every Optlaser laser module. Single-diode lasers, multi-diode assemblies as well as solid-state lasers can be combined into a single free space beam or fiber-coupled output.
Quantity
24W RGB Laser Module
The 24W RGB Laser Module is a lightweight, convenient, and easy-to-integrate laser module with superior beam quality. This 24W RGB Laser Module delivers stable performance and high modulation efficiency, making it ideal for diverse applications. This laser module is widely used in stage lighting, laser module projection,outdoor laser illumination, laser positioning, laser communication, and spectrum analysis. For demanding environments, the 24W RGB Laser Module ensures reliability and precision.Choosing the 24W RGB Laser Module ensures you've selected a reliable, high-performance laser solution.
Wavelength range (nm) | 638±5 | 525±5 | 450&465±5 | |
Output power (W) | 7 | 8 | 9W （1*450nm&1*465nm) | |
Light Beam type | All-fiber shaping | |||
Power stability (rms, over 4 hours) | <1 | |||
Working mode | CW | |||
LightBeam at exit (1/e2, mm) | 5*7 | |||
LightBeam at 10 meters (1/e2, mm) | 18*20 | |||
LightBeam at 20 meters (1/e2, mm) | 30*28 | |||
Beam divergence (mrad) | 1.1 | |||
Warm-up time (minutes) | <1minutes | |||

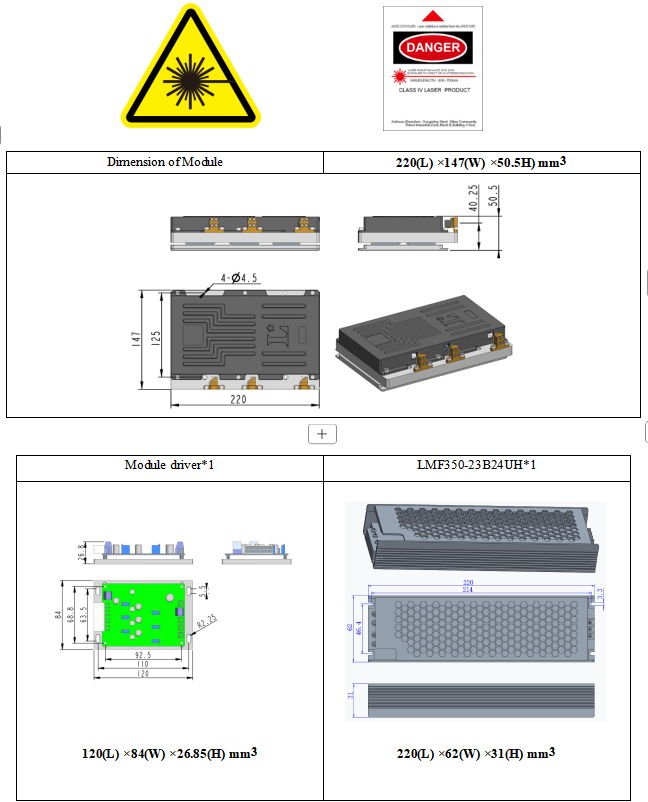

Light height (mm) | 40 | |||
Working temperature (℃) | -30℃~40℃ | |||
Power supply | DC 24V | LMF350-23B24UH | ||
Analog modulation (0~5V) | >2V full power light, <2V shut off light | ≈0.12V~4.95V | ||
Expected life (hours) | 10000 | |||
Warranty time | 1-year | |||
