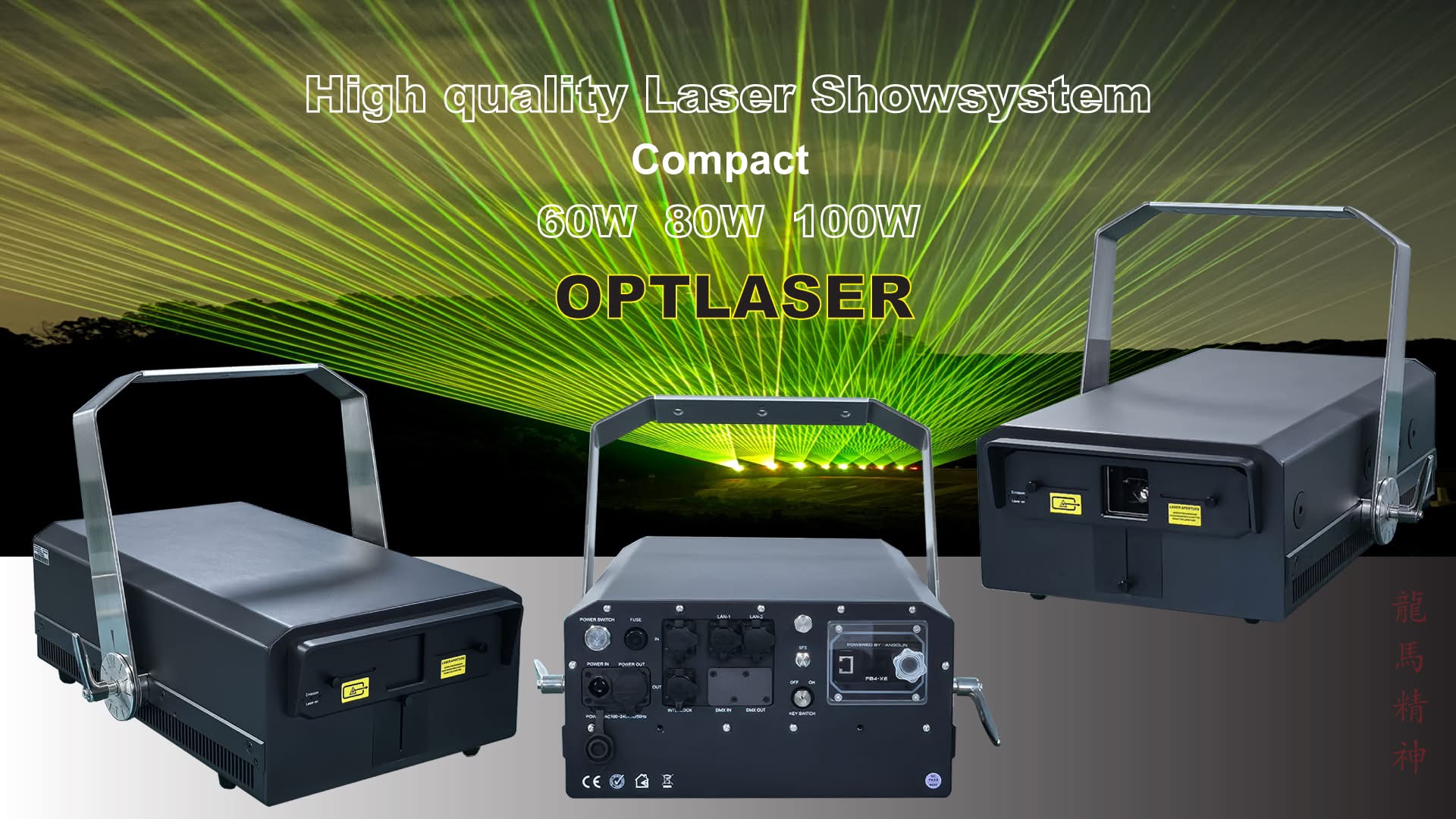

GT80 Series 60W RGB Laser Show System
GT60000-RGB
Optlaser GT80 series systems are our new laser projectors with super-charged power output. The three projectors in the range offer 60W&80W full-colour output with scanners capable of atmospheric, abstract, and basic graphic effects.
The GT80 series is designed for harsh outdoor environments, and its housing is built to IP65 standards - thoroughly waterproof and dustproof.
Outdoor laser is perfectly suitable for fixed installations for advertising, mappings, or any kind of graphics projection.
The GT80 series is designed for harsh outdoor environments, and its housing is built to IP65 standards - thoroughly waterproof and dustproof.
Outdoor laser is perfectly suitable for fixed installations for advertising, mappings, or any kind of graphics projection.
Quantity
| Specification - GT80 Series | |
| Models | GT60000-RGB |
| Source | Type: | Semiconductor diode | Full-colour RGB laser projector |
| Suitability: | outdoor laser displays [atmospheric, abstract, text, animations] |
| Beam Size@Aperture[mm] | 8*9mm |
| Divergence（full angle） | 0.95mrad |
| System control | Auto, Sound to light, SD-Card, DMX512 , ILDA ( FB4 on request) |
| Scanning System | OPT-30PW:26Kpps@8°，MAX±20°(measured data) |
| Wavelength[nm] | R/638 G/525 B/450nm(5*450nm) |
| Laser Power [mW] | 18000mW /20000mW /26000mW |
| Guaranteed opt. output [mW] | 64W |
| Modulation [kHz] | 100 | analogue |
| Power Supply | 100~240V 50~60Hz |
| Power Consumption [W] | ＜1000W |
| Weight[kg] | 35.2Kg |
| Size [WxHxD, mm] | 558*358*215mm |
| Cooling: | Heatsink+TEC Cooling+Casting Aluminum Housing+Fans (at bottom) |
| Packaging: | Road case |
| Operation temperature [°C]: | minus 20℃ to 40℃ |
