PR10 Series 14W RGB Laser Module
RGB-14W
The PR10 series modules offer three wavelength options: 638nm (red light, 4.2W), 525nm (green light, 4.8W), and 450nm (blue light, 5.5W). Each module utilizes FAC diodes for beam correction to optimize beam quality. These modules demonstrate excellent stability and performance across a wide range of applications. Equipped with TTL control and analog modulation, they are suitable for a wide range of laser applications and come with a one-year warranty.
The wavelength range includes 638±5nm (red light), 520±5nm (green light), and 450±5nm (blue light).
Beam correction using FAC diodes ensures beam quality.
Power stability is less than 1% over 4 hours.
Can operate in continuous wave (CW) mode.
The beam size varies with distance, for example, 18*18mm at 10 meters and 30*25mm at 20 meters,Beam divergence is less than 1.1mRad.
Warm-up time is less than 1 minute. The operating temperature range is -20°C to 40°C.
Supports TTL control (0/5V) and analog modulation (0-5V).
The wavelength range includes 638±5nm (red light), 520±5nm (green light), and 450±5nm (blue light).
Beam correction using FAC diodes ensures beam quality.
Power stability is less than 1% over 4 hours.
Can operate in continuous wave (CW) mode.
The beam size varies with distance, for example, 18*18mm at 10 meters and 30*25mm at 20 meters,Beam divergence is less than 1.1mRad.
Warm-up time is less than 1 minute. The operating temperature range is -20°C to 40°C.
Supports TTL control (0/5V) and analog modulation (0-5V).
Quantity
PR10 Series 14W RGB Laser Module
The 14W RGB Laser Module is a lightweight, convenient, and easy-to-integrate RGB laser module with superior beam quality. This 14W RGB Laser Module delivers stable performance and high modulation efficiency, making it ideal for diverse applications. This laser module is widely used in stage lighting, laser module projection,outdoor laser illumination, laser positioning, laser communication, and spectrum analysis. For demanding environments, the 14W RGB Laser Module ensures reliability and precision.Choosing the 14W RGB Laser Module ensures you've selected a reliable, high-performance laser solution.
PR10 Series-14W
Wavelength range (nm) | 638±5 | 525±5 | 450±5 | |
Output power (W) | 4.2 | 4.8 | 5.5 | |
Light beam type | Fiber shaping | |||
Power stability (rms, over 4 hours) | ＜1 | |||
Working mode | CW | |||
Light beam at exit (1/e2, mm) | 4.5*7 | |||
Light beam at 10 meters (1/e2, mm) | 16*20 | |||
Light beam at 20 meters (1/e2, mm) | 30*25 | |||
Beam divergence (mrad) | 1.1 | |||
Warm-up time (minutes) | ＜1minutes | |||
Light height (mm) | 40 | |||
Working temperature (℃) | -20℃~40℃ | |||
Power supply | DC 24V | TF-GP255S | ||
Analog modulation (0~5V) | ≈0.12V~4.95V | |||
Expected life (hours) | 10000 | |||
Warranty time | 1 year | |||

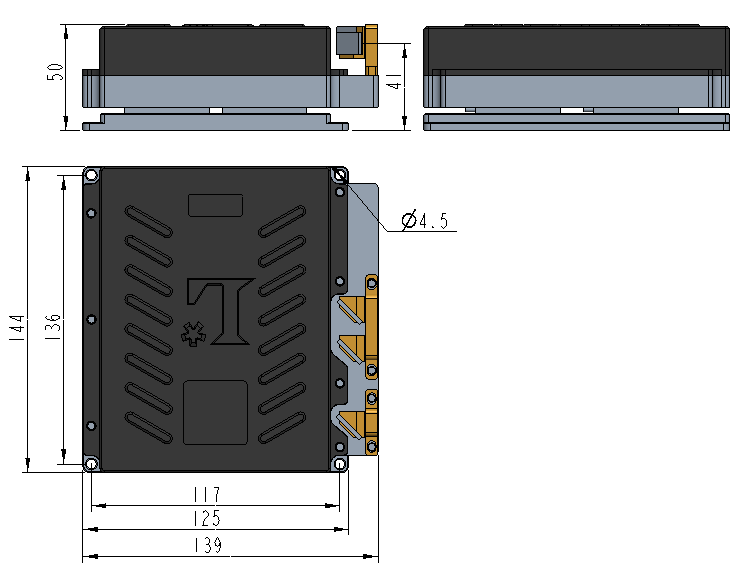

Module Dimension 144(L) ×139(W) ×50(H) mm3 |
|
Module Driver *1 | TF-GW255D*1 |

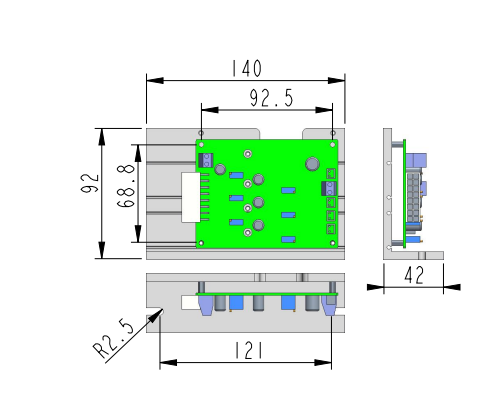

140(L) ×92(W) ×42(H) mm3 |

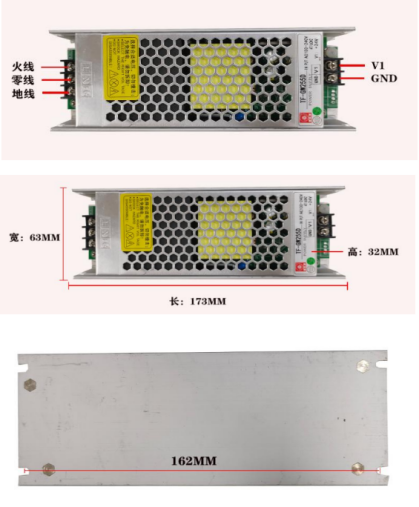

173(L) ×63(W) ×32(H) mm3
|
