PR10 Series 9W RGB Laser Module
RGB-9W
The PR10 series modules offer three wavelength options: 638nm (red light, 2.8W), 525nm (green light, 3.2W), and 465nm (blue light, 3W). Each module utilizes FAC diodes for beam correction to optimize beam quality. These modules demonstrate excellent stability and performance across a wide range of applications. Equipped with TTL control and analog modulation, they are suitable for a wide range of laser applications and come with a one-year warranty.
The wavelength range includes 638±5nm (red light), 520±5nm (green light), and 465±5nm (blue light).
Beam correction using FAC diodes ensures beam quality.
Power stability is less than 1% over 4 hours.
Can operate in continuous wave (CW) mode.
The beam size varies with distance, for example, 18*18mm at 10 meters and 30*25mm at 20 meters,Beam divergence is less than 1.1mRad.
Warm-up time is less than 1 minute. The operating temperature range is -20°C to 40°C.
Supports TTL control (0/5V) and analog modulation (0-5V).
The wavelength range includes 638±5nm (red light), 520±5nm (green light), and 465±5nm (blue light).
Beam correction using FAC diodes ensures beam quality.
Power stability is less than 1% over 4 hours.
Can operate in continuous wave (CW) mode.
The beam size varies with distance, for example, 18*18mm at 10 meters and 30*25mm at 20 meters,Beam divergence is less than 1.1mRad.
Warm-up time is less than 1 minute. The operating temperature range is -20°C to 40°C.
Supports TTL control (0/5V) and analog modulation (0-5V).
Quantity
PR10 Series 9W RGB Laser Module
The PR10 Series 9W RGB Laser Module is a lightweight, convenient, and easy-to-integrate solution offering superior beam quality. Delivering stable performance and high modulation efficiency, this 9W RGB Laser Module is ideal for diverse applications. The 9W RGB Laser Module is widely used in stage lighting, projection systems, outdoor laser illumination, positioning, communication, and spectrum analysis. Even in demanding environments, the PR10 Series 9W RGB Laser Module ensures reliability and precision. Choosing this 9W RGB Laser Module guarantees a dependable, high-performance laser solution.
Wavelength range (nm) | 638 ± 5 | 525 ± 5 | 4 6 5 ± 5 | ||
Output power (mW) | 2.9 W | 3.75 W | 3 W | ||
Beam type | All-fiber shaping | ||||
Power stability (rms, over 4 hours) | <1 | ||||
Operating mode | CW | ||||
Light spot at exit (1/e 2 ,mm) | 4*6.5 | ||||
Light spot at 10 meters (1/e2, mm) | 18*18 | ||||
Light spot at 20 meters (1/e2, mm) | 30*25 | ||||
Beam divergence (mrad) | 1mrad | ||||
Warm-up time (minutes) | <1minutes | ||||
Light output height(mm) | 34 | ||||
Working temperature(℃) | -20℃~40℃ | ||||
power supply | DC 24 V | TF-GP200S | |||
TTL control (0/5V) | Analog modulation (0~5V) | >0.8V full power light, <0.8V light off | ≈0.2V~4.8V | ||
Life expectancy (hours) | 10000 | ||||
Warranty time | 1 year | ||||
Company Information
Park Display | Factory Display | Office for R&D | Office for Sales |
|
|
|
|

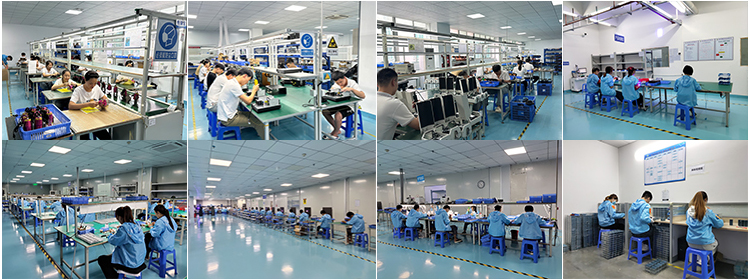

Production Line | |||
| |||
